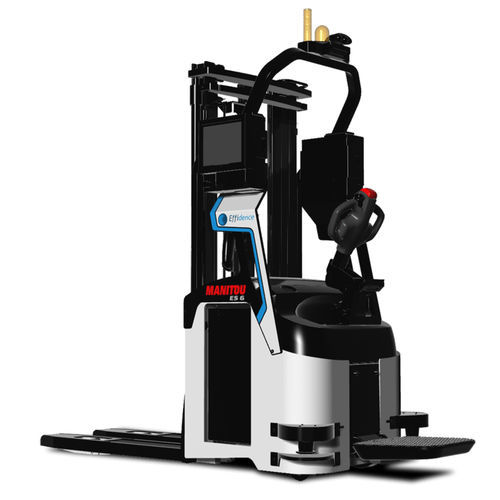

Autonomous stacker truck ES series
battery-poweredplatform24 V

Autonomous stacker truck - ES series - MANITOU - battery-powered / platform / 24 V
Autonomous stacker truck - ES series - MANITOU - battery-powered / platform / 24 V
Autonomous stacker truck - ES series - MANITOU - battery-powered / platform / 24 V - image - 2
Autonomous stacker truck - ES series - MANITOU - battery-powered / platform / 24 V - image - 3
Autonomous stacker truck - ES series - MANITOU - battery-powered / platform / 24 V - image - 4
Autonomous stacker truck - ES series - MANITOU - battery-powered / platform / 24 V - image - 5
Add to favorites
Compare this product


Characteristics

Energy
battery-powered
Operator
platform, autonomous
Voltage
24 V
Applications
for warehouse
Carrying capacity

1,200 kg, 1,400 kg, 1,600 kg
(2,645.5 lb, 3,086.5 lb, 3,527.4 lb)

Overall width

800 mm
(31.5 in)

Overall length

2,160 mm, 2,171 mm, 2,178 mm
(85 in, 85.5 in, 85.7 in)

Fork width

185 mm
(7.3 in)

Fork length

1,150 mm
(45.28 in)

Turning circle radius

2,143 mm
(84.4 in)

Battery capacity

270 Ah

Motor power traction

1.5 kW
(2.039 hp)

Motor power lifting

3 kW
(4.079 hp)

Travel speed

6 km/h
(3.73 mph)

Lifting speed

0.18 m/s, 0.3 m/s
(0.591 ft/s, 0.984 ft/s)

Description

The AMR ES612 (Autonomous Mobile Robot) in collaboration with Effidence is the first Manitou autonomous stacker! This robot can move up to 1.2t and is efficient in all types of applications; moving loads, taking orders, feeding production lines. Equipped with sensors, it moves easily in your warehouse while ensuring high safety. Its mapping software allows you to avoid investing in more expensive infrastructure. Equipped with a tiller arm and a folding platform, the ES 612 can also be used as a conventional stacker.
