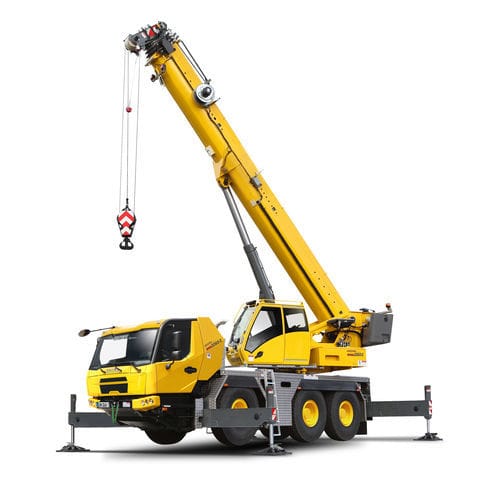

Self-propelled crane GMK3060-2

telescopicboomall-terrain

SIMPLICITY AND STRENGTH COMBINED. The Grove GMK3060-2 combines both simplicity and strength: The all-terrain taxi crane is quick and flexible to deploy and can carry 7.5 t of counterweight within 12 t per axle. Due to its compact design and easy setup the GMK3060-2 gets all jobs done in the shortest time even on confined job sites. BOOM • Main boom: 10,2 m - 40 m, 5-section • MEGAFORM®  • TWIN-LOCK®  • Swingaway jib: 8 m (optional) • Swingaway jib: 8,7 m /15 m (optional) CARRIER • Drive/steer: 6x4x6 (optional 6x6x6) • MEGATRAK® • Engine: Cummins QSL9 - C 350, 254 kW • Transmission: ZF TraXon 12 • EUROMOT 5 / EPA / CARB Tier 4 final (non-road) (optional EUROMOT 3a / EPA / CARB Tier 3 (non-road)) • Carrier cab: Latest generation of Grove carrier cabs SUPERSTRUCTURE • 20° Tiltable superstructure cab • Eco Mode • CCS (Crane Control System) COUNTERWEIGHT • Total 13,5 t (7,5 t within 12 t/axle, 13,5 t within 16,5 t/axle, 13,5 t within vehicle width) DIMENSIONS • Compact dimensions: Minimum width 2,55 m and overall length 11,29 m • Tailswing: 3,52 m  • Outrigger base: 6,83 m x 6,20 m • MAXbase (optional)
