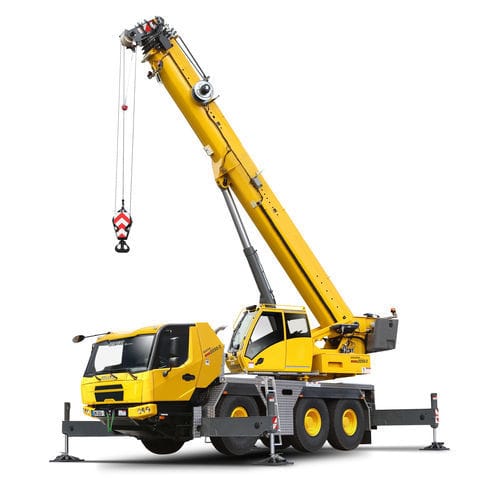

Mobile crane GMK3050-3telescopicboomall-terrain
Add to favorites
Compare this product
Characteristics
- Configuration
- mobile
- Structure
- boom, telescopic
- Operating environment
- all-terrain
- Applications
- lifting
- Other characteristics
- hydraulic, compact
- Lift capacity
50 t
(55.1 us ton)- Working height
51 m
(167'03" )- Horizontal reach
40 m
(131'02" )- Drive engine power
254 kW
(345 hp)- Total counterweight
7.5 t
(8.267 us ton)- Width (base)
3 m
(9'10" )- Length (base)
11 m
(36'01" )- Total weight
36,000 kg
(79,366 lb)
Description
Very compact dimensions and all equipment on board guarantee a fast set-up and immediate readiness even on tight jobsites. The GMK3050-3 features a five section 40 m TWIN-LOCK hydraulic pinned main boom and an extra 8 m swingaway jib. The CCS operating system with jog dial for efficient and comfortable operation and the boom configurator mode offering always the best boom configuration and utilization.
BOOM
• Main boom: 10,2 m - 40 m, 5-section
• MEGAFORM®
• TWIN-LOCK®
• Swingaway jib: 8 m (optional)
CARRIER
• Drive/steer: 6x4x6 (optional 6x6x6)
• MEGATRAK®
• Engine: Cummins QSL9 - C 350, 254 kW
• Transmission: ZF TraXon 12
• EUROMOT 5 / EPA / CARB Tier 4 final (non-road) (optional EUROMOT 3a / EPA / CARB Tier 3 (non-road))
• Carrier cab: Latest generation of Grove carrier cabs
