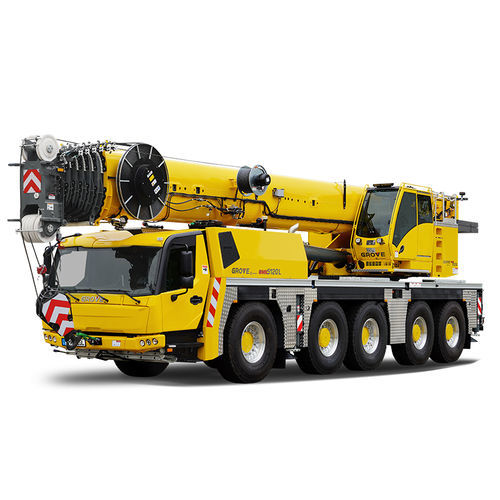

Mobile crane GMK5120Ltelescopicall-terrain5-axle
Add to favorites
Compare this product
Characteristics
- Configuration
- mobile
- Structure
- telescopic
- Operating environment
- all-terrain
- Number of axles
- 5-axle
- Other characteristics
- with counterweight, light
- Lift capacity
120 t
(132.3 us ton)- Working height
90 m
(295'03" )- Horizontal reach
66 m
(216'06" )- Total counterweight
35.5 t
(39.132 us ton)- Width (base)
3 m
(9'10" )- Length (base)
14 m
(45'11" )- Total weight
60,000 kg
(132,277 lb)
Description
THE LEADER OF THE LIGHT 5 AXLE CRANES
The GMK5120L boosts the versatility of taxi cranes to new levels. The 120 t machine offers an exceptional 66 m main boom and can easily carry a class-leading amount of counterweight – no matter if counterweight configurations for 10 t, 12 t, or 16.5 t per axle are required. This results in great flexibility and low transportation costs.
BOOM
• Main boom: 12,2 m - 66 m, 7-section
• MEGAFORM®
• TWIN-LOCK®
• Swingaway jib: 9,7 m /16 m (optional)
• Boom extension: 1 x 8 m (optional)
• Jib extension: 1 x 8 m (optional)
CARRIER
• Drive/steer: 10x6x10 (optional 10x8x10)
• MEGATRAK®
• Engine: Mercedes-Benz OM471LA, 390kW
• Transmission: Mercedes G 280-16
• EUROMOT 5 / EPA / CARB Tier 4 final (non-road) (optional EUROMOT 3a / EPA / CARB Tier 3 (non-road))
• Carrier cab: Latest generation of Grove carrier cabs
