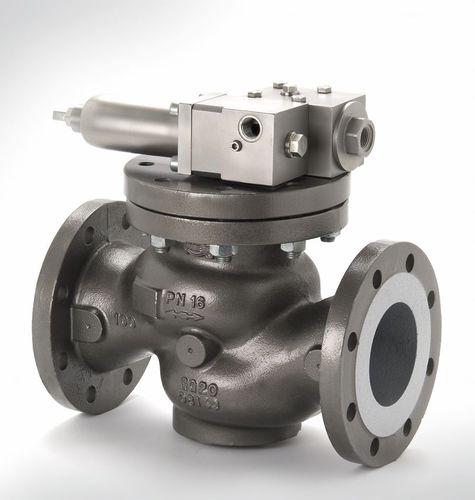

Pressure-reducing valve RP 810
Add to favorites
Compare this product
Characteristics
- Function
- pressure-reducing
- DN
Min.: 40 mm
(1.575 in)Max.: 400 mm
(15.748 in)- Pressure
Min.: 16 bar
(232.1 psi)Max.: 160 bar
(2,320.6 psi)- Temperature
130 °C
(266 °F)- Flow rate
Min.: 20 m³/h
(706.29 ft³/h)Max.: 900 m³/h
(31,783.2 ft³/h)
Description
single-seat straight-way valve made of cast steel for large flow rates at high pressure | usable for liquids and gas | body made of GGG-40, GS-C 25, CrNiMo-steel | hardfaced valve cone and seat available for high pressure drops | maintenance work can be done from above at the installed valve, special versions available
Catalogs
Short Catalogue
68 Pages
Exhibitions
Meet this supplier at the following exhibition(s):
Hyvolution 2025
28-30 Jan 2025 paris (France) Stand 4R38
