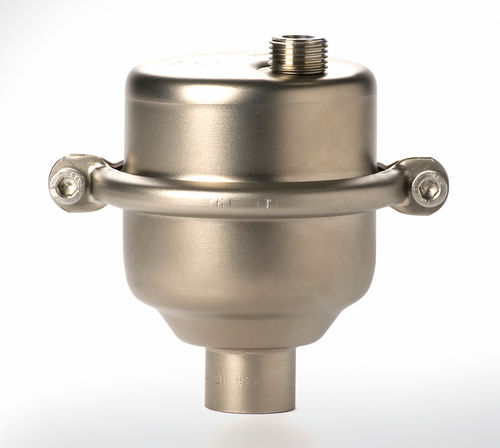

Purge valve EB 1.32
for seawater

Purge valve - EB 1.32 - MANKENBERG GmbH - for seawater
Purge valve - EB 1.32 - MANKENBERG GmbH - for seawater
Add to favorites
Compare this product


Characteristics

Function
purge
Media
for seawater
DN

Min.: 0.5 in

Max.: 0.75 in

Pressure

16 bar
(232.1 psi)

Temperature

130 °C
(266 °F)

Flow rate

6 m³/h
(211.89 ft³/h)

Description

float-controlled operational bleeding valve for all types of pipelines, tanks etc., thanks to soft seal especially tight-closing | outlet to the top | usable for nearly all liquids (petrol, oil ...), available in the ozone-resistant version | completely made of deep-drawn CrNiMo-steel (316L) surface finish of the body Ra ≤ 1.6 μm | easy-to-maintain owing to the clamp system | corrosion-resistant, very lightweight and compact | available in special materials, such as seawater-resistant stainless steel, titanium, Hastelloy® etc. | also available with non-return valve as pure bleeding valve
