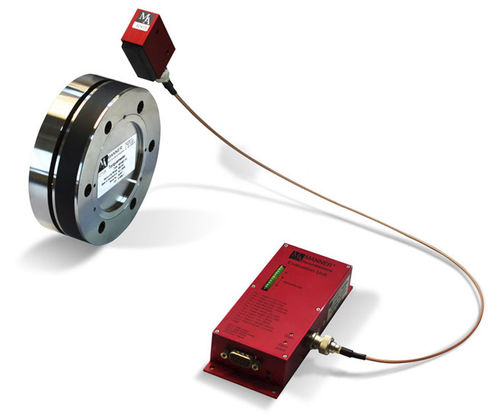

Static torque sensor

with flange connection

Torque measuring flanges from Manner can be employed for the measurement of both static and dynamic torques on rotating or stationary shafts and machine flanges. Using the torque and rotation speed parameters, the power flow along a shaft can be directly calculated. In the age of automation and the demand for ever better efficiency, these two parameters are becoming increasingly important. Manner Sensortelemetrie GmbH has developed special compact torque flanges for the fulfilment of these tasks. All Manner torque measuring systems feature non-contact torque signal transmission according to the patented sensor telemetry procedure. They operate without the need for bearings and therefore can be mounted without the need for an additional bearing bracket or articulated shafts. This avoids costs and allows for extremely compact test stands.
