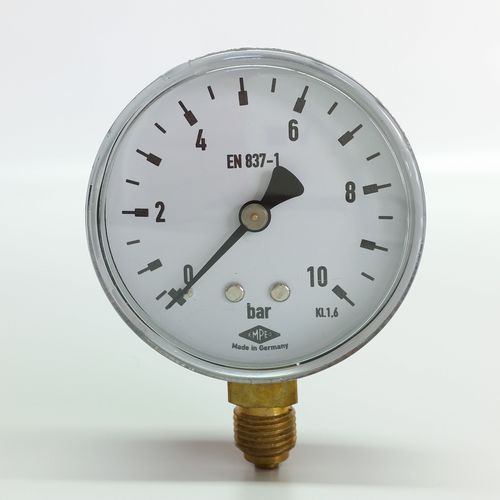

Pressure gauge with integrated LED lighting 63

analogthreadedbrass

Bourdon tube pressure gauge acc. to EN 837-1 ♦ with LED light 9-12 V ♦ Nominal size: Ø63mm ♦ Acc. of max. scale value: 1,6% ♦ Measuring system: copper alloy ♦ Case: steel, enamelled black ♦ Window: snap-in window polycarbonate Application area ♦ Measuring of negative and positive pressure for fluids and gaseous media (the medium should be compatible with brass and bronze and should not affect any copper alloy) Evaluate their product with the LED gauges. Incorporated are 4 bright white LEDs with very low power consumption. Already been run using a one 9 volt battery, or 12 volts duration voltage. If you need it for 24 volts, just turn against a 1,5KOhm resistance.
