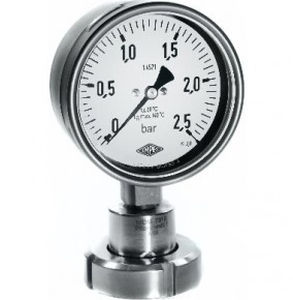

Diaphragm seal with flange connection MDM 7310

for pressure gaugesfor the food industry

Diaphragm seal ♦ Process connection: DIN 11 851 conical coupling and groove-nut ♦ Size: DN 25...80 ♦ Rated pressure: PN 40 (DN 25, 32, 40) ♦ Rated pressure: PN 25 (DN 50, 65, 80) ♦ Measuring instrument connection: G1/2" female ♦ Body material: stainless steel♦ Membrane: Stainless steel, free of dead space, welded to the diaphragm seal body Application area ♦ Diaphragm seals of the model range MDM73... are used espacially in the food industry, where hygenic process sequence are highly important. ♦ Bourdon tube pressure gauges, manometric switches, pressure transducer, pressure absorber and other pressure measuring gauges can be equiped with diaphragm-seals of this model range.
