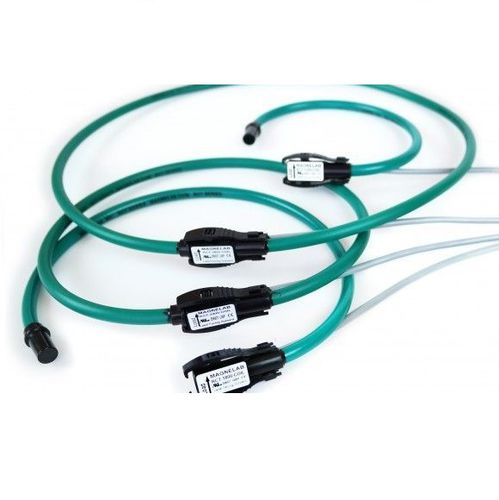

Rogowski coil current sensor RCT 4800-000

ACthree-phasesingle-phase

RCT-4800-000 Flexible Rogowski Coil RopeCT 0.070 Vac Output at 1,000A – 16 inch Diameter Rope CT RCT-4800-000 Flexible Rogowski Coil is a single-phase flexible Rogowski coil (Rope CT) that measures AC current up to 15,000 amps with an output of 0.333 Vac (with integrator). Additionally, the coil’s accuracy leads the industry with 0.5% linearity accuracy. The coil provides an output of 0.070 volts AC at 1000 amps through the primary when operating at 60Hz (at 50 Hz the output is 58.33 mV per 1000 A). Furthermore, it has a 48″ length, 16″ diameter and is extremely flexible. RCT-4800-000 Flexible Rogowski Coil The flexible Rogowski coil opens at the connector junction and may be installed on a bus bar or existing cable in a matter of seconds. The RCT-4800-000 is sold without the optional integrator. However, you may purchase this coil with a single-phase integrator, see the RCT-4800-250 through RCT-4800-3000. For areas with limited space, you may purchase a uniquely shaped version of the RCT-4800 (RCT-900T), also known as a ‘tear drop’ because of its shape. It may also be purchased with or without an integrator. You may buy the coils individually, or also as part of the RCS-4800 three-phase flexible AC current sensor system that integrates multiple coils with an output of 0.333 volt AC and includes an integrator and power supply. Most Common Uses for – This Flexible Rogowski Coil The linearity accuracy of the RCT-4800 is 0.5%. It is important to know your measuring needs so that you include the right integrator. The coil itself does not require an external power supply; however, the integrator requires between 12 and 30V AC or DC.
