Rogowski coil current sensor RCS-150T

ACthree-phase

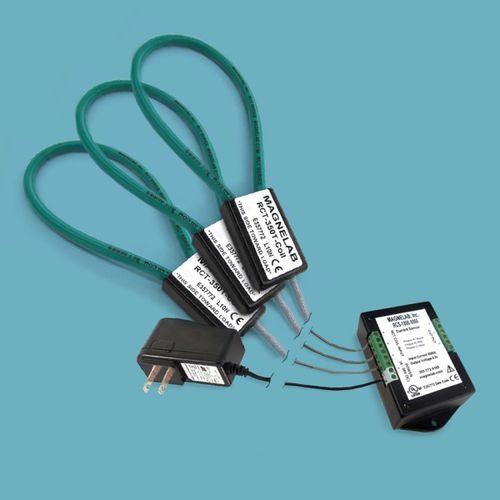

RCS-150T Rogowski Coil Kit RCS-150T 3 phase small Rogowski Coil kit (1.5″ diameter) – Transforms an AC input current up to 5000 Amps to a 0.333 Volt output. The RCS-150T is a small Rogowski coil kit for 3 phases. The Rogowski coil kit that comes with (3) 1.5″ diameter RopeCTs (Rogowski Coils) and one integrator (signal conditioner) that converts the RopeCT voltage to 0.333 volt AC output. The integrator requires a DC power supply that operates between 9 and 36 Vdc. The teardrop design of the RCS-150T allows for superior centering of the Rogowski coils (all Rogowski coils encounter small error if they are not perfectly centered). It is designed to allow a zip tie to be secured around the Rogowski coil, perfectly centering the primary conductor. The RCS-150T, like other Rogowski coils, allows for very wide ranges of input currents. The product is designed to operate from 10 to 130 of the rated current with 1 accuracy. For example, the RCS-150T-250, which is the 250A version, will be 1 accurate from 25A to 325A. RCS-150T Features •Greater linearity •High amperage measurement capability •Extremely flexible •Lightweight •Large circumferences available •No shorting block required Compatible power meters accept a voltage input. Look for meters on our website that start with this symbol: If you are purchasing a Measurlogic, Veris or eGauge meter you do not need to purchase the RCS integrator (at least if ordered properly). Instead, you can use QTY 3 of the passive RCT-150T-000 (that comes without the integrator) and save money.
