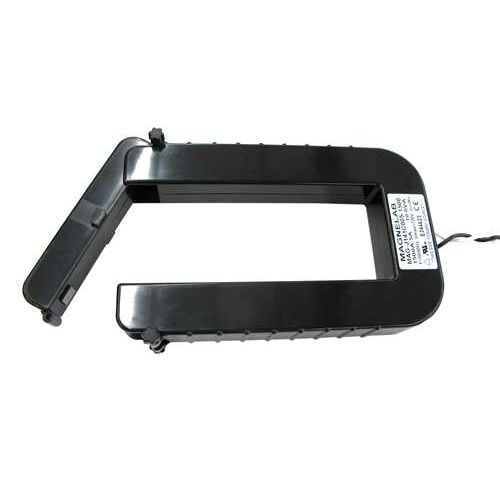

Transformer current sensor ACT-0140

ACsplit-core

ACT-0140 Split-Core Current Sensor Current Transformer, 5 Amp Output 0.94 inch Opening up to 2400 Amp 5 Amp Output ACT-0140 Split-Core Current Sensor | Features: ● Current transformer Input up to 2,400 Amps ● Output 5A at rated current ● Accuracy at 5% to 120% of rated current ● UL Registered, CE and RoHS compliant ● 6 FT, 18 AWG leads ACT-0140 | Description: “The ACT-0140 was previously known as the MAG-J141C005, which is a split core current transformer for measuring current. The input ratings for this AC current sensor are between 1500 and 2400 Amps. The corresponding output is 5A. The transducer has been manufactured using high quality, durable materials, which are mainly nickel laminations. The device is perfect for installation on an existing electrical wire, as it can simply be snapped around the conductor carrying the current to be measured. It comes with a self-locking mechanism for ease of use. The 0.94 inch opening makes it very easy for the device to be put into place. The ACT-0140 features an accuracy of up to class 0.5/1.0VA. Additionally, its rated voltage is 720V (0.72kV). It can withstand 1.2 times continuous rated current before overload. It operates in a temperature range of between -20 to 70 degrees Celsius. The test voltage is 3kV for a full minute on a frequency range of between 60 and 60 Hz. The input is 2,400 Amps, which is higher than that for the ACT-0073 split core current transformer, which has an input of up to 1,000 Amps. The device is fully UL registered, as well as being compliant with CE and RoHS. When purchased, it comes with a six foot lead, 18 AWG.
