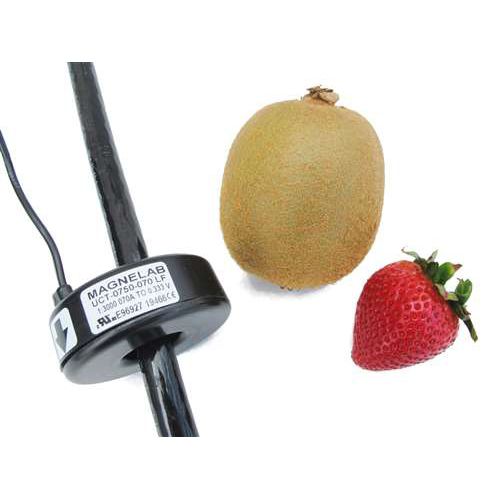

Toroidal current sensor UCT-0750 series

ACsolid-coreprecision

UCT-0750 Solid-Core AC Current Sensor UCT current transformer models are better than one percent accuracy with less than one degree phase angle. Output is controlled by a precision resistor fixed at the industry standard of 0.333 Volt AC. The rugged epoxy encapsulated construction of this current sensor comes with eight feet twisted leads. Contact Magnelab for other ratings and customized designs. Revenue Grade version available with 0.5% linearity with less than 0.26° phase shift. Revenue Grade meets or exceeds IEC metering Class 0.5. See SPEC sheet for more details. UCT-0750 | Features Rated input current from 5 amps to 100 amps Output 0.333 Volt AC at rated current w/ Linearity accuracy ± 1% or better Phase angle < 1 degree measured at 50% rated current (<0.26 degrees for Revenue Grade) Accuracy at 10% to 130% of rated current 8 ft. twisted-pair lead and UL recognized Custom output and other parameters are available Operating temperature: -20 degrees Celcius to +110 degrees Celcius Operates from 30 Hz to 1,000 Hz 8 ft. twisted-pair lead, 22 AWG UL Standard 61010-1, EN60044-1 Additional information Weight 0.13063460256 kg Amp Rating0, 100, 30, 50, 70 Output 0.333 Volt Product TypeCurrent Sensor Input AC
