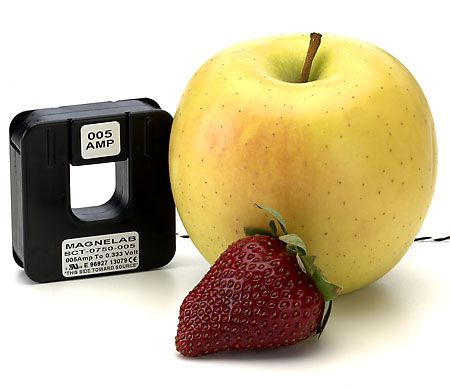

Transformer current sensor SCT-0750 series

ACsplit-coremonitoring

SCT-0750 0.75″ Split-Core AC Current Sensor Magnelab’s SCT-0750 Series split-core current sensors transform an AC input current up to 200 Amps to a 0.333 Volt output. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The SCT-0750 has a self-locking mechanism and a 0.75″ opening. Frequent Applications •Data logging •Recording •Power monitoring •Energy management •Cost allocation SCT-0750 | Features •Rated input up to 200 Amp •Output of 0.333 Volt at rated current Linearity accuracy ± 1% •Accuracy at 10% to 130% of rated current •Phase angle < 2 degrees (valid for 70A or higher) •Operates from 30 Hz to 1,000 Hz •8 ft. twisted-pair lead •Maximum Voltage: 600 V (on bare conductor) •UL recognized, CE, and RoHS compliant SCT-0750 | Description The SCT-0750 split core current transformer is made by current sensor manufacturer Magnelab. In fact, it transforms the AC input current of up to 200 Amps into an output voltage of 0.333 volt. These transformers are particularly suitable when installed on wiring that is already in place, as it can easily snap around the existing conductor. In addition, the SCT-0750 comes with a self-locking mechanism. These AC current sensors have a 0.75 inch opening. General usage includes recording, data logging, energy management, power monitoring and cost allocation. The SCT-0750 features a rated input of up to 200 Amps. Its output at rated current is 0.333 volt. Linear accuracy on this current sensor is impressive at 1% either way, making its actual performance very close to estimated values.
