Transformer current sensor SCT-0400

ACsplit-core

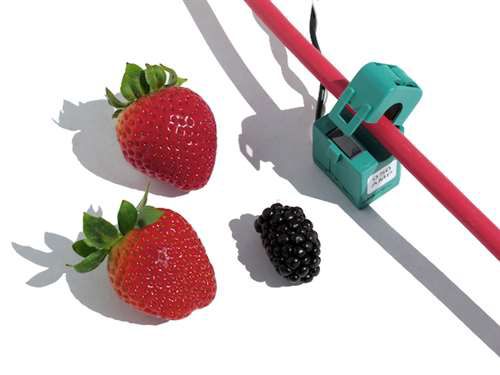

SCT-0400 Split Core AC Current Sensor Magnelab’s SCT-0400 split-core current sensor transforms an AC input current from 1 to 75 Amps to a 0.333 Volt output. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The opening is 0.40″ in diameter. Frequent Applications Data logging Recording Power monitoring Energy management Cost allocation SCT-0400 | Features: Current Sensor rated input from 1 Amp to 75 Amp w/ Output 0.333 Volt AC Operates from 50 Hz to 400 Hz 8 ft. twisted-pair leads UL Recognized Current Sensor w/ Linearity accuracy ± 1% Accuracy at 10% to 130% of rated current Self-locking mechanism guaranteed for 500 closings Custom output and other parameters are available SCT-0400 | Description The Magnelab SCT-0400, a current sensing product designed to transform AC input currents that range between 1 to 75 amps into a 0.333 Volt output. First, it is a class 2 transformer and it is perfect for installation on electrical wiring that is already in place. Second, it simply needs to be snapped around the conductor that has already been installed. These AC current sensors have a 0.40 inch diameter opening. It is often used in recording, data logging, energy management, power monitoring and cost allocation to name but a few. The SCT-0400 split core current sensor is UL recognized and it has a linear accuracy of 1% either way. Additionally, the accuracy is between 10% and 130% of the rated current onto which it is applied.
