Transformer current sensor RCT-1800-000 series

AC

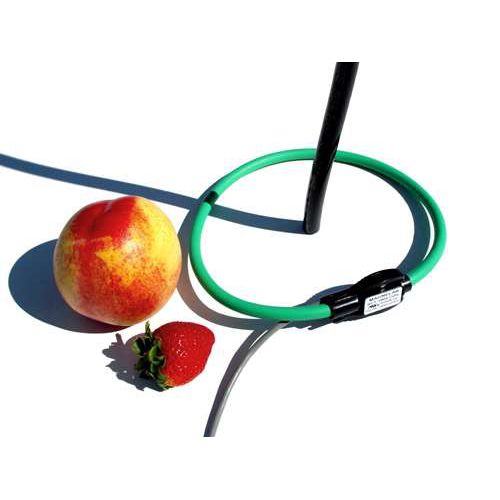

RCT-1800-000 flexible RopeCT current sensor The RCT-1800-000 flexible RopeCT current sensor measuring AC current up to 15,000 amps. It provides an output of 0.070 volts AC at 1000 amps through the primary when operating at 60Hz (at 50 Hz the output is 58.33 mV per 1000 A). It has an 18″ length, 6″ diameter and is extremely flexible. A Magnelab Rope CT comes in varying sizes with optional custom lead connectors. Available sizes include the RCT-1200 with a 12″ length and a 4″ diameter, the RCT-2400 with a 24″ length and an 8″ diameter and the RCT-3600 with a 36″ length and a 12″ diameter. The flexible coil opens at the connector junction and may be installed on a bus bar or existing cable in a matter of seconds. The RCT-1800-000 and other Rope CT products may be sold with or without an integrator. See the RCT-1800-250 through RCT-1800-3000 to purchase this Rope CT with an integrator. Other size coils may be purchased with an integrator as well. For areas with limited space, you may purchase a different shaped version of the RCT-1800, also known as a ‘tear drop’ because of its shape. It may also be purchased with or without an integrator. You may buy the coils individually, or as part of the RCS-1800 three-phase flexible AC current sensor system that integrates multiple coils with an output of 0.333 volt AC.
