Rogowski coil current sensor RCT-2400-000

ACsingle-phase

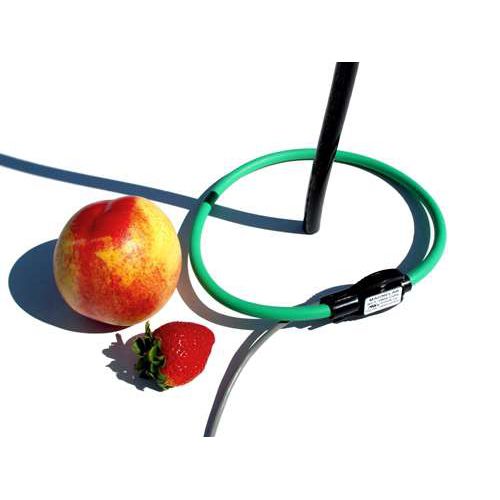

RCT-2400 Flexible Rogowski Coil RCT-2400 single-phase flexible Rogowski coil (Rope CT) that measures AC current up to 15,000 amps with an output of 0.333 Vac and an industry leading 0.5% linearity accuracy. It provides an output of 0.070 volts AC at 1000 amps through the primary when operating at 60Hz (at 50 Hz the output is 58.33 mV per 1000 A). It has a 24″ length, 8″ diameter and is extremely flexible. RCT-2400 Flexible Rogowski Coil | Description The flexible Rogowski coil opens at the connector junction and may be installed on a bus bar or existing cable in a matter of seconds. The RCT-2400-000 is sold without an integrator. See the RCT-2400-250 through RCT-2400-3000 to purchase this Rogowski coil with a single-phase integrator. For areas with limited space, you may purchase a uniquely shaped version of the RCT-2400 (RCT-350T), also known as a ‘tear drop’ because of its shape. It may also be purchased with or without an integrator. You may buy the coils individually, or as part of the RCS-2400 three-phase flexible AC current sensor system that integrates multiple coils with an output of 0.333 volt AC and includes an integrator and power supply. Most Common Uses The linearity accuracy of the RCT-2400 is 0.5%. It is important to know your measuring needs so that you include the right integrator. The coil itself does not require an external power supply; however, the integrator requires between 12 and 30V AC or DC. This may be purchased from Magnelab as a separate option. If you intend to use your RCT-2400 with certain power meters, you will not need an integrator. These meters have a built-in integrator designed to work with Magnelab coils.
