Rogowski coil current sensor RCS-2400ACthree-phase
Add to favorites
Compare this product
Characteristics
- Technology
- Rogowski coil
- Electrical characteristics
- AC, three-phase
- Primary current
Min.: 250 A
Max.: 5,000 A
Description
RCS-2400 Three-Phase RopeCT AC Current Sensor

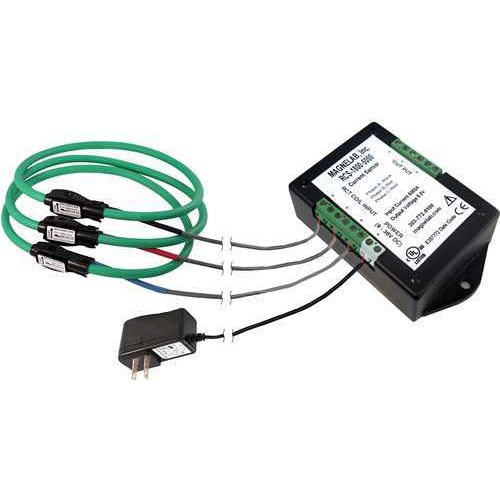

The RCS-2400 Series integrator (signal conditioner) converts the RopeCT (Rogowski Coil) input voltage to 0.333 volt AC output. The integrator requires a DC power supply which operates from 9 to 36 Vdc. The integrator is available with screw terminals (pictured) or with flexible strain relief cables attached to the integrator. The RCS-2400 is a 24″ rope that comes with multiple amp rating options
Note: The integrator requires a power supply of 9 to 36 Vdc, which is not included.
Additional information
Weight 0.90718474 kg
Amp Rating 1000, 1500, 2000, 250, 2500, 3000, 400, 4000, 500, 5000, 800
Product Type Rope CT's
Input AC
Output 0.333 Volt
