Rogowski coil current transducer MGS-2400clampACthree-phase
Add to favorites
Compare this product
Characteristics
- Technology
- Rogowski coil
- Mounting
- clamp
- Electrical characteristics
- AC, three-phase
- Other characteristics
- 4-20 mA
- Primary current
Max.: 5,000 A
Min.: 250 A
Description

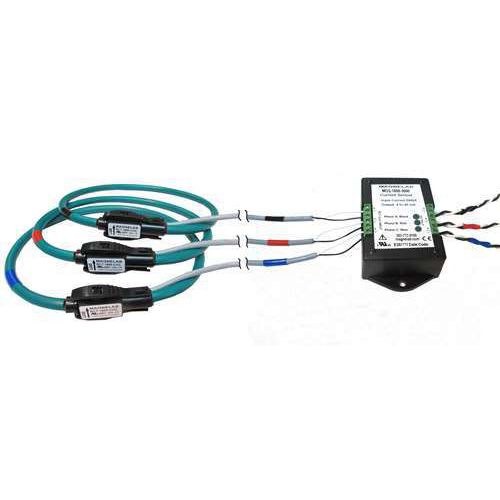

MGS-2400 Three Phase Rogowski Coil
Three-Phase 4-20 mA True-RMS AC Current Transducer MGS-2400
MGS-2400 | Description
The MGS-2400 Three Phase Rogowski Coil integrator and 4-20 mA Transducer (signal conditioner) converts the RopeCT (Rogowski Coil) input voltage to 4-20 mA DC output. The transducer requires a DC loop power supply which operates from 8 to 35 Vdc. The transducer is available with screw terminals for ease of installation. The MGS-2400 includes (3) 24-inch ropes and the integrator.
Technology: Rogowski
Mounting: clamp
Electrical characteristics: AC, three-phase
Current: Max.: 20 mA – Min.: 4 mA
Additional information
Weight 0.55565065325 kg
Amp Rating 1000, 1500, 2000, 250, 2500, 3000, 400, 4000, 500, 5000, 800
Input AC
Output 4 – 20 mA DC
Product Type Rogowski Coil, Rope CT's
