Transformer current sensor ICT-2000 ACsplit-core
Add to favorites
Compare this product
Characteristics
- Technology
- transformer
- Electrical characteristics
- AC
- Other characteristics
- split-core
- Primary current
Min.: 400 A
Max.: 1,600 A
Description

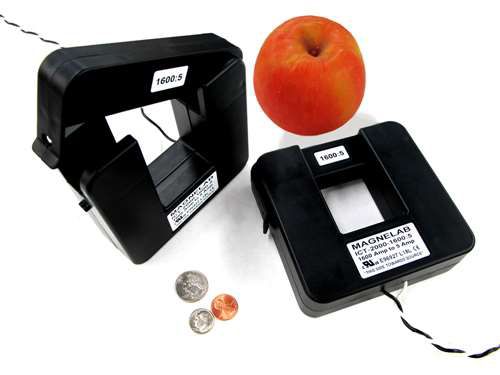

ICT-2000 Split-Core Current Transformer
Current Transformer, 5 Amp Output
Opening of 2.0 inches
The Magnelab AC split-core current transformer can output 5A and can measure current up to 1,600A. All materials used are UL recognized class B material. These units pass hi-pot test at 4,000V RMS.
Features:
● Current transformer Input – from 400 to 1,600 Amps
● Output 5 A at rated current
● Accuracy ± 1% at suggested burden & operational from 50 Hz to 400 Hz
Additional information
Weight 0.87694524851547 kg
Amp Rating1000, 1200, 1600, 400, 500, 600, 800
Product TypeSplit Core CT's
Output 5A
