Rogowski coil current sensor RCT-2400 AC
Add to favorites
Compare this product
Characteristics
- Technology
- Rogowski coil
- Electrical characteristics
- AC
- Primary current
Max.: 5,000 A
Min.: 250 A
Description

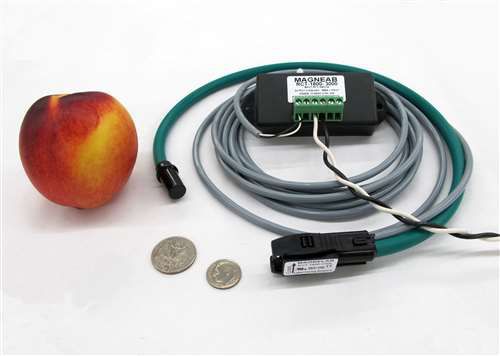

Magnelab RCT-2400 Series flexible RopeCT current sensor measures AC current up to 5,000 Amps. The flexible coil opens at the connector junction and can be installed on an existing cable or buss-bar in a matter of seconds. The RCT-2400 is a 24-inch rope.
Note: The integrator requires a power supply of 12 to 30V AC or DC, which is not included. You may
purchase one here.
Frequent Applications
Energy sub-meters
Power meters
Power quality monitoring
Condition monitoring
Distributed measurement systems
Additional information
Weight 0.2630835746 kg
Amp Rating 1000, 1500, 2000, 250, 2500, 3000, 400, 4000, 500, 5000, 800
Product Type Rogowski Coil, Rope CT's
Input AC
