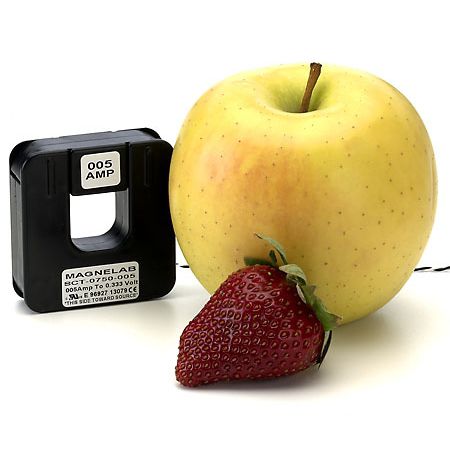

Transformer current sensor SCT-075H

ACsplit-core

SCT-075H Split-Core Current Sensor Revenue Grade Accuracy, 0.333 Voltage Output 0.75″ Opening with Rating Up to 200 Amps Magnelab’s SCT-075H Series Current Sensors meets ANSI revenue grade class C57.13 accuracy class 0.6 with unprecedented linearity and superior phase angle up to 200 Amps passing through the center conductor. The SCT-075H transforms an AC input current up to 200A to an output of 0.333 Volts. Split-core transformer are ideal for installation on existing electrical wiring by snapping around the conductor. Maximum Voltage: 600V (on bare conductor). The following amperages are available: 50A, 100A, and 200A. The opening is 0.75″ wide. Power Monitor Features Linearity accuracy ± 0.5% Phase angle ± 0.25% Rated input up to 200 Amps Accuracy at 10% to 120% of rated current Operates from 30 Hz to 1,000 Hz 8 ft. twisted-pair lead UL Listed, CE, and RoHS compliant Maximum Voltage: 600V (on bare conductor) Output 0.333 Volt AC at rated current Current Sensors with Superior Phase Angle The Magnelab SCT-075H series power monitor current sensors fully comply with ANSI revenue grade class C57.13 accuracy class 0.6. This gives them superior phase angle, as well as unrivaled linearity simply not found in any other class 2 transformer. A maximum of 200 amperes may pass through the center of the conductor, which should satisfy a wide range of applications. The SCT-075H transforms up to 200 Amp AC input current to 0.333 Volts of output current.
