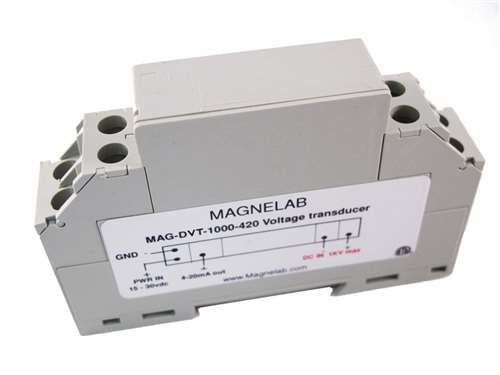

DC voltage transducer DVT-1000

DIN rail

DVT-1000 DC Voltage Sensor DIN Rail-Mounted Isolated DC Voltage Transducer The DVT-1000 DC Voltage Transducer is designed to convert a 10-1000 DC Voltage input to either a 4-20mA output or a voltage standard output that is proportional to the input. It is also perfect for solar-string voltage monitoring. The DC Voltage Transducer provides effective and safe isolation between the input and output. DVT-1000 DC Voltage Sensor Features: •Primary voltage DVT-100: 1000-10,000 Vdc •Output 4-20mA, 0-1Vdc, 0-5Vdc •Accuracy: 1% over range •Linearity: 0.5% over range •Response time: 10.0 mSec •Working Range: 0-120% •Overload: 150% continuous •Temperature: -30 degrees C to 70 degrees C operating •Humidity: 90% operating •Isolution: 4.5KV, 1 Minute •Supply voltage: 15-48 Vdc Additional information Weight 0.0589670081 kg Amp Rating420, V01, V05 Product TypeVoltage Transducer Input DC Output 4-20 mA
