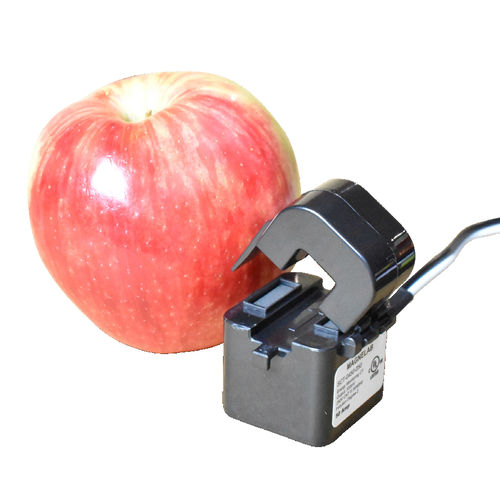

Transformer current sensor SCT-0450-050

ACsplit-core

SCT-0450-050 split-core sensor Current Sensor Features •UL-Listed •Output 0.333 Volt AC at rated current •Operates from 50 Hz to 400 Hz •Phase displacement < 1.0° at rated current •Accuracy Class 1.0 •8 ft. 18 AWG white/black leads •Rated input of 50 Amp •Custom output and other parameters are available Description Magnelab’s new UL-Listed SCT-0450-050 split-core sensor measures AC current up to 60 Amps. The SCT-0450-050 meets IEC 61869-2 Class 1.0 and is UL-Listed according to UL 2808. The SCT-0450-050 is compact, performs well and is easy to install around existing conductors. APPLICATIONS Energy and sub-metering Electrical load monitoring Network equipment Instruments and sensors Control systems Solar and renewable energy SPECIFICATIONS Rated Primary Current 50A Rated Output 333mV Weight 0.26 lbs (120 g) Phase Displacement < 0.5° at full-scale Temperature Rating Operating: -40 to 185°F (-40° to 85°C) Storage: -49° to 194°F (-45°C to 90°C) Leads 8 ft. 18 AWG black/white cable Rating: 600V (UL 2808) Insulation Voltage 3510 VAC Insulation Test (1 min) Rated Frequency 50 - 400 Hz Pollution Degree Degree 2, up to 2000 meters Certifications UL 2808 Listed; IEC 61010-1 Accuracy 0.5 Class
