Transformer current sensor SCT-0950-200split-core
Add to favorites
Compare this product
Characteristics
- Technology
- transformer
- Other characteristics
- split-core
- Primary current
200 A
Description

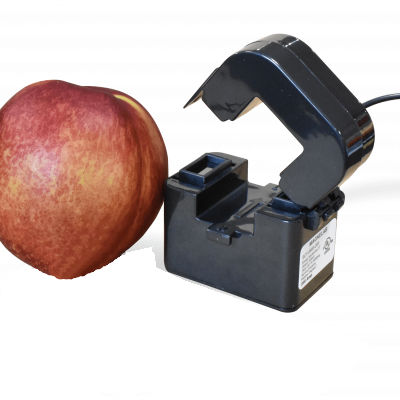

SCT-0950-200 split-core sensor
Current Sensor Features
•UL-Listed
•Output 0.333 Volt AC at rated current
•Operates from 50 Hz to 400 Hz
•Phase displacement < 0.5° at full-scale
•Accuracy Class 0.5
•8 ft. 18 AWG white/black leads
•Rated input of 200 Amp
•Custom output and other parameters are available
Description
Magnelab’s new UL-Listed SCT-0950-200 split-core sensor measures AC current up to 240 Amps (120% of 200A). The SCT-0950-200 meets IEC 61869-2 Class 0.5 and is UL-Listed according to UL 2808. The SCT-0950-200 is compact, performs well and is easy to install around existing conductors.
