Air blower LD series
side-channelsingle-stage

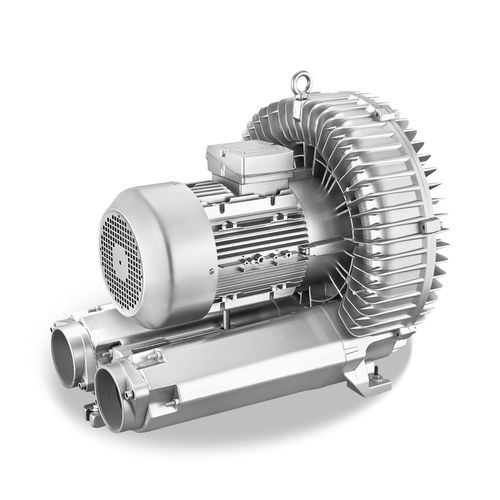

Air blower - LD series - Manvac Technik ltd - side-channel / single-stage
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 2
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 3
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 4
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 5
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 6
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 7
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 8
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 9
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 10
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 11
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 12
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 13
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 14
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 15
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 16
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 17
Air blower - LD series - Manvac Technik ltd - side-channel / single-stage - image - 18
Add to favorites
Compare this product


Characteristics

Type
air
Technology
side-channel
Number of stages
single-stage
Flow

Min.: 80 m³/h
(2,825.173 ft³/h)

Max.: 1,050 m³/h
(37,080.4 ft³/h)

Operating pressure

Min.: 130 mbar
(1.885 psi)

Max.: 460 mbar
(6.672 psi)

Nominal power

Min.: 0.4 kW
(0.544 hp)

Max.: 18.5 kW
(25.153 hp)

Description

Single stage ring blower Model:Single stage ring blower Phase:3 Stage:one Frequency:50/60 (HZ) Power:18.5 (kw) Voltage:345-415△/600-720Y (V) Current:37 (A) AirFlow:1050 (m3/h) Vacuum:-340 (mBar) Pressure:460 (mBar) Sound:74 (Db) Weight:140 (kg) Dimensions(L*W*H):644*550*569 (mm)
