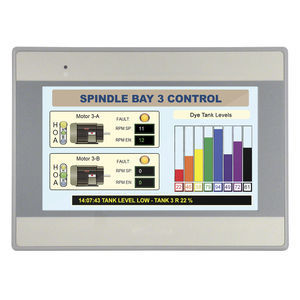

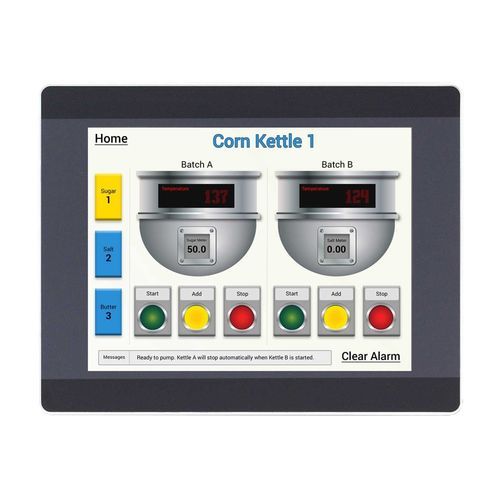

Resistive touch screen HMI HMI5097NXL

panel-mountVESA mounting1024 x 768

As part of our Advanced Series, this non-UL model is our lowest priced 9.7" HMI. This unit takes advantage of the more progressive features in our free programming software and proves an excellent value for it's enhanced capabilities. If you are in need of more specific IIoT features, see our Smart HMI Series. • Enhanced Graphics, Animation • Enhanced Security • Email Notification • Recipe, Data Logging, Pie Charts • Trend Graphic, Circular Trends • Remote Access (Easy Access 2.0) System Memory (RAM) 256 MB Memory (Flash) 512 MB RTC Built-in I/O Ports Serial 1 x DE9P COM1: RS-232 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wire LAN 1 x 10/100 Base-T RJ-45 CANbus N/A USB Host 1 x USB 2.0 USB Client N/A Audio N/A Video N/A Wi-Fi N/A HDMI® N/A SD Card Slot N/A Display Size (W x H) 7.78 x 5.83 inches [197 x 148 mm] Max. Colors 262 K Luminance (cd/m²) 350 Viewing Angle (H°/V°) 140/130 Contrast Ratio 500:1 Backlight Lifetime (hours) 30,000+ Active Area Accuracy Length (X) ± 2%, width (Y) ± 2% Electrical Input Voltage 24 ± 20% VDC Input Current 500 mA @ 24 VDC Input Power 12 W Power Isolation Built-in Isolation Resistance Exceed 50 MΩ at 500 VDC Mechanical Enclosure Plastic, charcoal grey/silver PCB Coating Yes Dimensions (W x H x D) 10.26 x 8.00 x 1.44 inches [260.6 x 203.1 x 37 mm] Net Weight Approx. 1.87 lbs. [0.85 kg] Environmental Operating Temperature 32° ~ 122° F (0° ~ 50° C) Storage Temperature -4° ~ 140° F (-20° ~ 60° C) Relative Humidity 10% ~ 90% (non-condensing) Vibration Endurance 10 to 25 Hz (X, Y, Z direction, 2 G, 30 minutes) Certifications CE, RoHS Software EasyBuilder Pro (v6.00.01.174 or later), EasyAccess 2.0 (optional), MQTT, VNC
