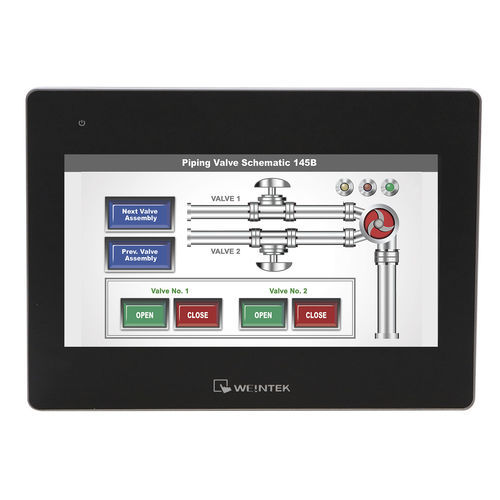

Resistive touch screen HMI cMT3102X

panel-mountVESA mounting1024 x 600

A powerful 10.1 inch dual ethernet port HMI that provides maximum IIoT functionality. Sophisticated features include: MQTT, Sparkplug B, WebView and SQL. When this optimally-sized 10.1'' screen is coupled with the M02 Wi-Fi Expansion Module, the result is a flexible connectivity solution consolidated into a single package. Supports CANbus, OPC UA Client or Server. ∂ Wireless Compatibility via M02 Wi-Fi Expansion Module* ∂ High Speed Screen Update ∂ Built-in Edge Gateway Function ∂ Email Alarm Notification ∂ Recipe Functionality, PDF Reader ∂ SQL Database, Database Server, OPC-UA Server System Memory (RAM) 1 GB Memory (Flash) 4 GB RTC Built-in I/O Ports Serial 1 x DE9P COM1: RS-232, COM3: RS-232**, 1 x DE9S COM2: RS-485 2 or 4 wire, COM3: RS-485 2 wire, CANbus LAN 1 x 10/100 Base-T RJ-45, 1x GbE RJ-45 CANbus Yes (CANopen, CANbus 2.0A/2.0B, SAE J1939 protocols) USB Host 1 x USB 2.0 USB Client N/A Audio N/A Video N/A Wi-Fi* M02 Wi-Fi Expansion Module (optional – see notes) HDMI® N/A SD Card Slot N/A Display Size (W x H) 8.82 x 4.96 inches [224 x 126 mm] Max. Color 16.7M Luminance (cd/m²) 350 View Angle (H°/V°) 160/140 Contrast Ratio 500:1 Backlight Lifetime (Hours) 50,000+ Active Area Accuracy Length (X) ±2%, width (Y) ±2% Electrical Input Voltage 24 ± 20% VDC Input Current 1 A @ 24 VDC Input Power 24 W Power Isolation Built-in Isolation Resistance Exceed 50 MΩ at 500 VDC Mechanical Enclosure Plastic, charcoal grey PCB Coating Yes Dimensions (W x H x D) 10.67 x 8.39 x 1.50 inches [271 x 213 x 38 mm] Panel Cutout (W x H) 10.24 x 7.95 inches [260 x 202 mm] Net Weight Approx. 2.65 lbs. [1.2 kg]
