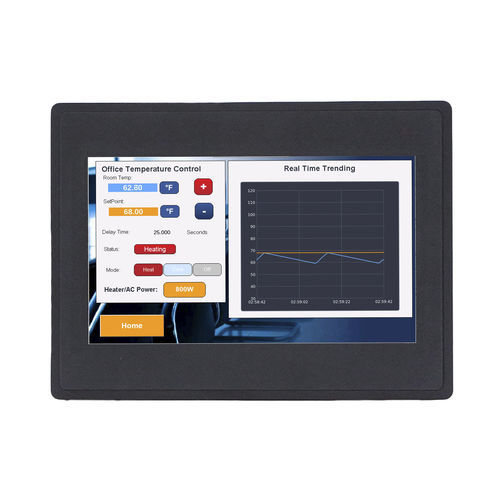

Resistive touch screen HMI HMC4043A-M
panel-mount1024 x 600RISC

Resistive touch screen HMI - HMC4043A-M - Maple Systems - panel-mount / 1024 x 600 / RISC
Resistive touch screen HMI - HMC4043A-M - Maple Systems - panel-mount / 1024 x 600 / RISC
Resistive touch screen HMI - HMC4043A-M - Maple Systems - panel-mount / 1024 x 600 / RISC - image - 2
Resistive touch screen HMI - HMC4043A-M - Maple Systems - panel-mount / 1024 x 600 / RISC - image - 3
Resistive touch screen HMI - HMC4043A-M - Maple Systems - panel-mount / 1024 x 600 / RISC - image - 4
Resistive touch screen HMI - HMC4043A-M - Maple Systems - panel-mount / 1024 x 600 / RISC - image - 5
Resistive touch screen HMI - HMC4043A-M - Maple Systems - panel-mount / 1024 x 600 / RISC - image - 6
Add to favorites
Compare this product


Characteristics

Interface
resistive touch screen
Mounting
panel-mount
Resolution
1024 x 600
Processor
RISC
Protection level
robust, IP66
Connectivity
USB, Ethernet, RJ45, RS-232
Other characteristics
IIOT
Screen size

4.3 in

Description

Expandable Class1 Division2, HMC + PLC combines the ease of a graphic HMI with PLC functionality in one unit and one software. Pair this with any HMC3 I/O modules, listed below, with free configuration software and IIoT Features, the HMC4043A-M product is best fitted for applications with a smaller number of I/O but still requiring Remote Access and Attractive Graphics. If you need more I/O, see our larger size units or pair this with a Maple PLC to add more I/O. ∂ Robust 4GB Flash Memory, 512MB RAM ∂ Up to 5 Discrete I/O Modules Supported ∂ Up to 1024 x 600 Pixel Resolution (10.1” model) ∂ Web Server, Ethernet and Serial Communication ∂ IP66 Rated for Washdown Environments System CPU 32-bit RISC, 528 MHz Memory (Flash) 4 GB Memory (RAM) 512 MB Memory (Data Log) 50 MB Memory (User Application) (Ladder Logic) (Alarms) (Retentive) (Keep Registers) 1 GB combined RTC Built-in I/O Ports LAN 1 x 10/100 Base-T RJ-45 CANbus N/A USB Host 1 x USB 2.0 USB Client 1 x USB 2.0 (Type C) SD Card Slot 1 x Secure Digital Memory Card (SD/SDHC) socket (32GB max. capacity

VIDEO
