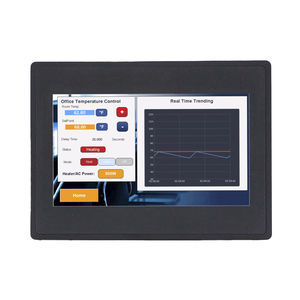

Resistive touch screen HMI HMC2070A-M
panel-mount800 x 480RISC

resistive touch screen HMI
resistive touch screen HMI
resistive touch screen HMI
resistive touch screen HMI
resistive touch screen HMI
resistive touch screen HMI
resistive touch screen HMI
Add to favorites
Compare this product


Characteristics

Interface
resistive touch screen
Mounting
panel-mount
Resolution
800 x 480
Processor
RISC
Protection level
IP66
Connectivity
USB, Ethernet
Screen size

7 in

Description

Expandable Class1 Division2, HMI+ PLC combines the ease of a graphic HMI with PLC functionality in one unit and one software. Pair this with up to three HMC3 I/O modules, listed below, to make this HMI + PLC customized and cost effective for your application. Paired with free configuration software, the HMC2070A-M is one of our most affordable and functional HMC + PLC models. ∂ Faster Processor ∂ Class 1, Division 2 ∂ Up to 3 Discrete I/O Modules Supported ∂ Up to 800 x 480 Pixel Resolution (7.0” model) ∂ Ethernet and Serial Communication Options CPU 32-bit RISC, 480 MHz Memory (Flash) 16 MB Memory (RAM) 16 MB max. Memory (User Application) 8 MB Memory (Ladder Logic) 2 MB Memory (Alarms) 1350 Individual Alarms Memory (Retentive) 8000 Words Memory (Data Log) 4 MB Memory (Keep Registers) 1000 Words RTC Built-in I/O Ports LAN 1 x 10/100 Base-T RJ-45 CANbus N/A USB Host 1 x USB 2.0 USB Client 1 x USB 2.0 (Type C)
