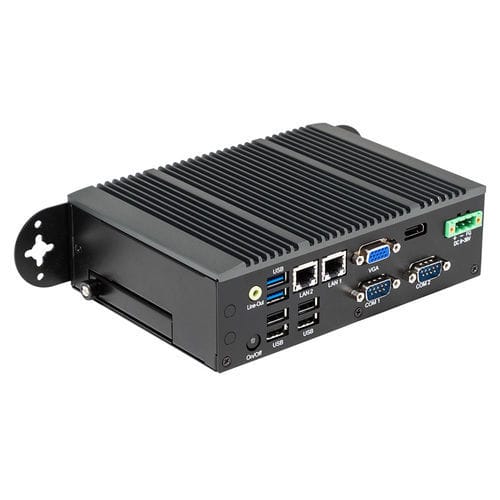

As part of our Industrial PC Series, this Box PC provides a high-quality option for applications that do not require a fixed display. With a Windows® or Linux® Ubuntu® Operating System, this PC supports 3rd party and SCADA software like our AVEVA® Edge. Pair our Box PC with an Industrial Monitor for greater flexibility.
• HDMI® and VGA ports
• Microsoft Windows® or Linux® OS Options
• Memory and Storage upgrades available
• Optional Wi-Fi Kit
• Steel Chassis, Aluminum Heatsink
• Wall or DIN Rail Mount
• Integrate with AVEVA™ Edge Software
System
Chipset SoCSystem System Memory
Options * 1 x DDR3-L 204-pin SO-DIMM RAM (4, 8 GB)
Serial COM1: RS-232/422/485 DE-9P (default RS-232)
Audio 1 x 3.5 mm line out
Display Interface 1 x VGA port (max. 1920 x 1200 pixels)
1 x HDMI® port (max. 1920 x 1200 pixels)
LAN 2 x GbE RJ-45
Power 3-pin connector header, DC power input
I/O Ports
Remote Power Switch N/A
Solid State Drive
Options ** 1 x 2.5” SATA II, MLC (32, 64, 128, 256, 512 GB SSD)
Storage
SD Card Slot N/A
Expansion Expansion Slot Optional Wi-Fi kit (Wi-Fi card and antenna)
Type N/A
Interface N/ATouch Screen
Light Transmission N/A
Input Voltage 9~36 VDC
Input Current 0.47 ~ 1.88 AElectrical
Input Power 17 W Max.
Construction Dark grey aluminum heatsink, black steel chassis
Rating IP30
Mounting Wall Mount (Wall mounting hardware not included)
DIN-Rail Mount optional (DIN-Rail kit sold separately)
Dimension (W x H x D) 9.65 x 5.12 x 2.17 inches [245 x 130 x 55 mm]
Mechanical
Net Weight Approx. 2.87 lbs. [1.3kg]
Operating Temperature 32~122°F [0~50°C]
Storage Temperature -22~158°F [-30~70°C]
Storage Humidity 10 to 90% @ 40°C, non-condensing
