Chain conveyor TFC series
horizontaltransferpallet

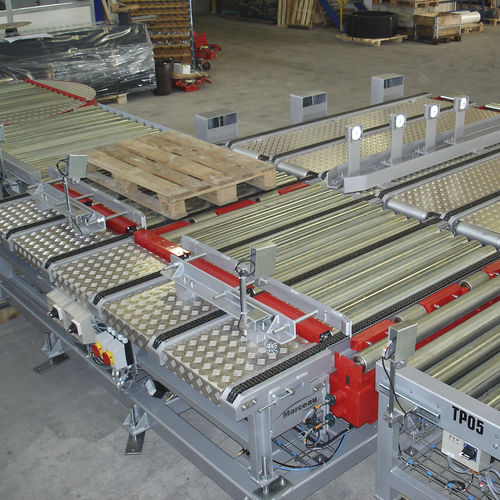

Chain conveyor - TFC series - MARCEAU - horizontal / transfer / pallet
Chain conveyor - TFC series - MARCEAU - horizontal / transfer / pallet
Chain conveyor - TFC series - MARCEAU - horizontal / transfer / pallet - image - 2
Chain conveyor - TFC series - MARCEAU - horizontal / transfer / pallet - image - 3
Chain conveyor - TFC series - MARCEAU - horizontal / transfer / pallet - image - 4
Chain conveyor - TFC series - MARCEAU - horizontal / transfer / pallet - image - 5
Chain conveyor - TFC series - MARCEAU - horizontal / transfer / pallet - image - 6
Chain conveyor - TFC series - MARCEAU - horizontal / transfer / pallet - image - 7
Add to favorites
Compare this product


Characteristics

Technology
chain
Form
horizontal
Function
transfer
Transported product
pallet
Maximum load

2,000 kg
(4,409.245 lb)

Description

Our chain roller transfer allows a change in direction of 90° of the loads transported • - Fabricated welded chassis • - Finishing: painted steel, hot galvanized steel or all stainless steel versions • - Handling height: 450 to 800 mm with adjustable feet (60 mm stroke) • - Maximum load per pallet: 2,000 kg • - Raise / lower system: o - By pneumatic cylinders o - By motorized cams
