Video measuring system Rotatif series

diameterlengthconcentricity

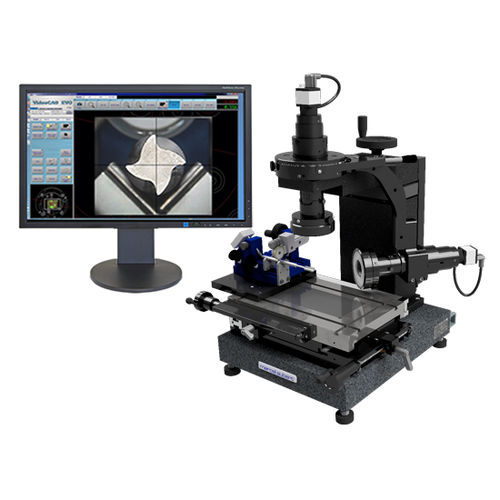

Rotatif 150 Video measuring system This machine is dedicated to the measurement of cutting tools. Vertical optics are used to measure diameters and lengths on a rotating tool. Horizontal optics enable the tip of the tool to be measured in order to check its orientation. The second horizontal optic rotates around the tool without displacing it, so several different angles can be measured with great reliability. N°: MA 185-020-60 Specifications: • - Granit base. • - Manual X-Y table MA 145-15, range 150 x 70mm with clutches. Heidenhain measuring scales. Mechanical precision 0.003mm / 100mm. • - Manual precision column, range 150mm. Mechanical precision 0.030mm / 100mm. • - 12X zoom-optic with 8 indexes. • - 2.3Mpx USB 3.0 color camera. • - Concentricity measuring tool. • - 24" screen. • - LED illuminators. • - Computer with monitor. • - Measuring and comparison software. • - Glass chromium deposit calibration ruler. • - Dimensions (WxDxH): 575x440x550mm. • - Weight: 57kg.
