Control measuring device TitanVIEW seriesgeometrycameraUSB
Add to favorites
Compare this product
Characteristics
- Measured value
- geometry
- Technology
- camera
- Applications
- for control
- Other characteristics
- USB, video
Description

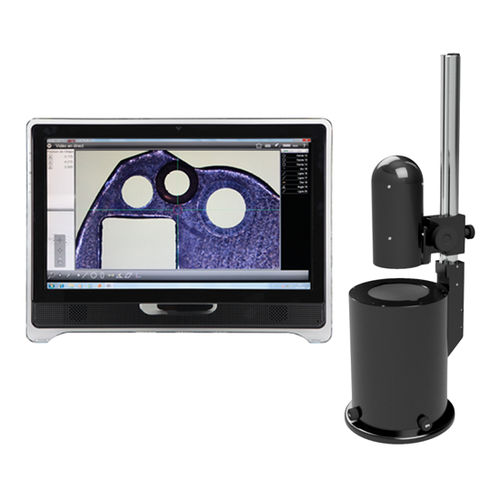

TitanVIEW
Video control device
This telecentric video measuring device makes it possible to quickly measure parts in the visual field. Its telecentricity at the level of optics and transmitted illuminator generates an image with particularly sharp edges even for a cylinder seen from the side. With its 230mm diameter base, this machine is one of the most compact on the market. The platform allows the implementation of many fittings.
N°: MA 152-244-21
Specifications:
• - Aluminum base with integrated illuminators' power unit.
• - Manual column, clearance range 240mm.
• - Fixed telecentric optics.
• - 4.9 Mpx USB 3.0 color camera.
• - LED illuminators.
• - 24" monitor with integrated computer "All In One".
• - Measurement and comparison software
• - Dimensions (WxDxH): 230x287x720mm.
• - Weight: 15kg.
