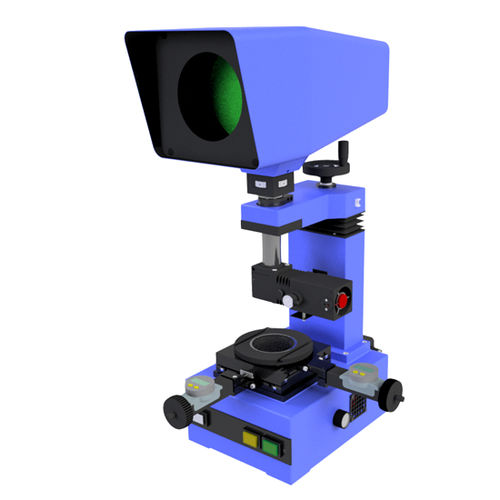

Profile measuring projector OpenPRO series

horizontal

OpenPRO 50 Measuring projector This analog system allows measurements to be made by projecting edges (live shadows). N°: MA 173-240-003 Specifications: • - Cast iron base with transmitted halogen illuminator. • - X-Y table MA 143-5, range 50 x 50 mm. Mechanical precision 0.010mm / 50mm. • - Digital micrometers Sylvac. Reading resolution 0.001mm. • - Manual precision column, range 150mm. Mechanical precision 0.030mm / 100mm. • - Rotary table 360° T-slots. • - Projector MA 240 EG with Ø 150mm screen. • - Ventilated incident halogen illuminator.
