Turbo emulsifier TURBO-FIX
turbinebatchfor liquids

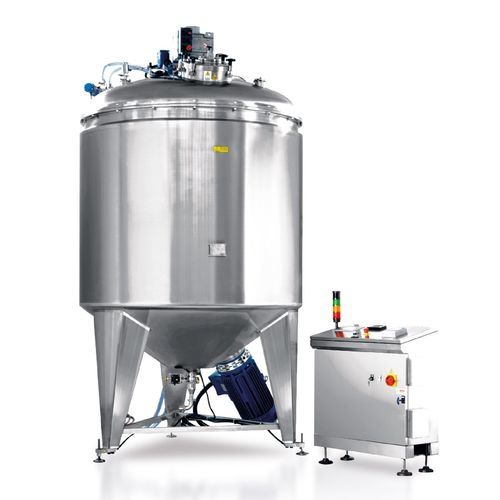

Turbo emulsifier - TURBO-FIX - Marchesini Group - turbine / batch / for liquids
Turbo emulsifier - TURBO-FIX - Marchesini Group - turbine / batch / for liquids
Add to favorites
Compare this product


Characteristics

Technology
turbine
Batch/continuous
batch
Product type
for liquids
Other characteristics
vacuum, stainless steel, turbo
Applications
for cream
Capacity

Min.: 25 l
(6.6 gal)

Max.: 20,000 l
(5,283.44 gal)

Description

Vacuum turboemulsifiers suitable for processing liquid and creamy products for medium and large scale productions, featuring with a fixed cover and vessel. Main features: VESSEL • Fixed vessel with fixed lid. • Parts in direct contact with product in AISI 316 stainless steel (optional). TEMPERATURE MANAGEMENT • Vessel with inner jacket filled with water/ thermic fluids for heating and cooling. • Max. operating pressure in the inner jacket for heating/cooling 0,49 bar. • Insulation of the vessel by means of jacket. VACUUM • Vacuum circuit with visual passage and liquid ring pump. EQUIPMENT OF THE VESSEL • Funnel on the lid for auxiliary substances loading. • Sight-port equipped with glass-wiper and light-port with momentary light on the lid. • TriClamp connections on the lid. • Ball-type valves on the lid. MIXER • Slow coaxial mixing system (counter-rotating). • Mixing blade with optimized profile for the vertical movement of product, including PTFE scrapers. • Variable speed of the mixer through inverter. TURBINE • Homogenizing turbine - rotor/stator type - at the bottom of the vessel. • Variable speed of the turbine through inverter. VESSEL UNLOADING • Piston valve for the product unloading, placed at the bottom of the vessel. SUPPORTING STRUCTURE • AISI 304 stainless steel supporting structure with anti-vibration/self-levelling and adjustable support feet.  OPERATOR PANEL • TOUCH 12” operator panel with Siemens PLC. • Digital visualization of the process parameters. • Function for the continuous recording of process parameters: trends and datalogger (D-SCRIBA).
