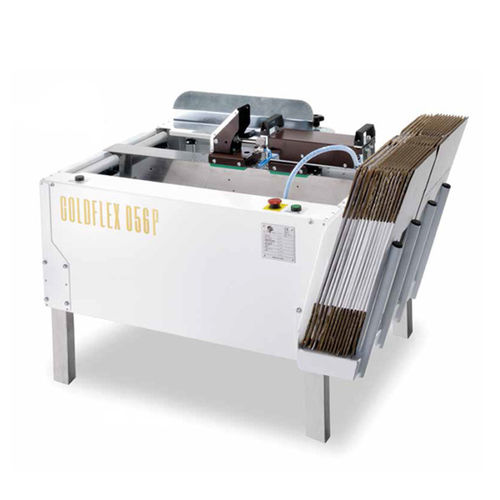

Semi-automatic cardboard box/case erector GOLDFLEX 056P

adhesive tapepneumatic

Semi-automatic case erector to form uniform sized American-type boxes with carton pusher to fold the four bottom flaps and to support the carton during the filling made by an operator Semi-automatic machine to form uniform sized boxes to fold the four bottom flaps and to support the carton during the filling made by an operator. The operator adjusts the machine on the different box sizes by handles. The unfolded blank is in-feed tilted with a downward pressure to fold the front and back flaps, then it is pushed forward to operate the flap closer by a pneumatic control and is kept with the bottom closed, facilitating in this way the filling operations, leaving the operator with free hands to operate. Once finished, the operator closes manually the four upper flaps and pushes the button activating the box pusher into the case sealer or next station. The Goldflex 056-P/056-PXL combined with a cartonsealer & out-feed conveyor is a compact semi-automatic - productive packaging line. Equipped with a side magazine for holding the blanks to form
