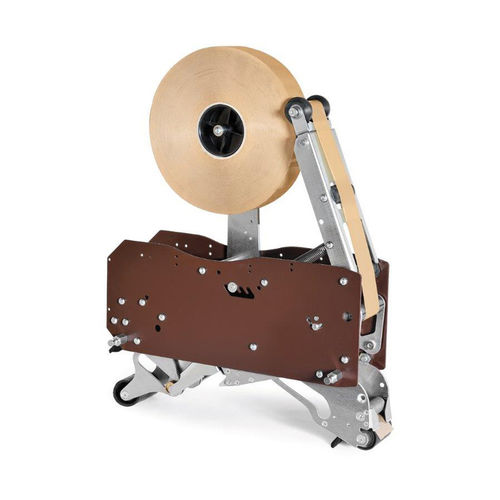

Self-adhesive tape taping head TU1.2

TU1.2 Taping head designed for use with 25 mm wide self-adhesive tape. It can be installed on all models of our taping machines thanks to the various sets of dedicated pins. TU 1.2 - - WORKING SPECS - U.M. - - Tape width - mm./inch. - 25/1" Maximum diameter of the tape reel - mm. - 360 Tape Reel inner hole diameter - mm. - 76 Minimum box height using two taping heads - mm. - 90 Maximum length of tape overlap - mm./inch. - 50/2" Minimum box width - mm. - 85 - TECHNICAL DATA - U.M. - - Full length - mm. - 425 Inner width measured at the mounting pivots - mm. - 87 Full width - mm. - 170 Total height with full reel - mm. - 595 Total weight - Kg. - 7,4
