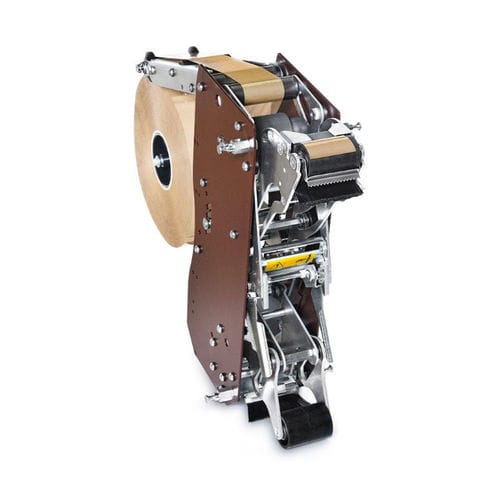

Self-adhesive tape taping head TU3.3S

TU3.3S Taping head configured for use with self-adhesive tape 75 mm wide. The length of the overlap is 80mm. It can be installed on all models of taping machines thanks to the various sets of dedicated pins. TECHNICAL DATA TU 3.3S - - WORKING SPECS - U.M. - - Tape width - mm./inch. - 75/3" Maximum diameter of the tape reel - mm. - 360 Tape Reel inner hole diameter - mm. - 76 Minimum box height using two taping heads - mm. - 115 Maximum length of tape overlap - mm./inch. - 80 / 3" 5⁄32 Minimum box width - mm. - 125 - TECHNICAL DATA - U.M. - - Full length - mm. - 440 Inner width measured at the mounting pivots - mm. - 137 Full width - mm. - 170 Total height with full reel - mm. - 620 Total weight - Kg. - 8,2
