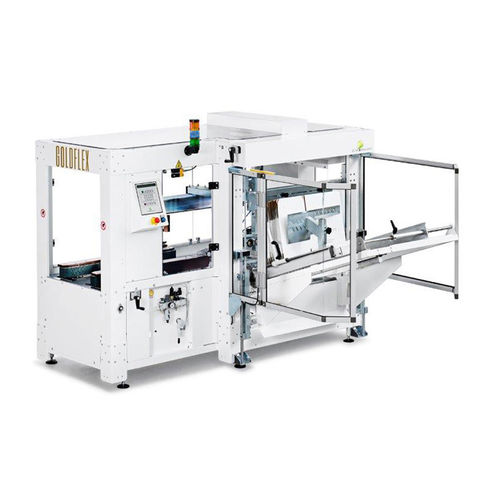

Automatic cardboard box/case erector GOLDFLEX

hot-melt glueadhesive tapehigh-speed

Box sealing with selfadhesive –tape Side belt drive system- bottom sealing Automatic case erector with integrated bottom box sealing system The machine must be adjusted through handles with  position indicators on the box dimensions to be formed. It forms and seals  the bottom of uniform sized American type boxes automatically folding the 4 bottom flaps. The flap folding system performance is assured by the perfect synchronous lever movements.The suction cup system, actioned by a Venturi group, picks the carton blank from the side magazine and holds it during the opening. After the forming and sealing  with self-adhesive tape the box is sent to a manual filling station or to a pick & place packer to be than top sealed.The compact dimensions allow GOLDFLEX to be installed in existing lines optimizing the space. • Standard gravity magazine: about 100 carton blanks depending on the thickness of the box • The machine is managed by a dedicated PACBRO dedicated electronic card and 2x40 LCDdisplay • Picking head with suction cups powered by a Venturi vacuum system • Safety guards in transparent methacrylate with unique coding RFID to immediately stop the machine once open (CE) • Control panels and switches ergonomically located GOLDFLEX         TECHNICAL DATA U.M.       Machine footprint (LxWxH)  mm. 2206x2186x1758 Machine weight Kg. 500 Hourly production rate Boxes/h 650 Width driving belts mm. 65 Box transfer speed mt./min. 18 Box storage capacity n° boxes 90 ÷ 100 Workbench height mm. 650 ELECTRICAL DATA U.M.       Voltage V 400 Phases n° 3~+PE Frequency Hz 50 Installed power kW 0,3 Electrical protection rating IP 55
