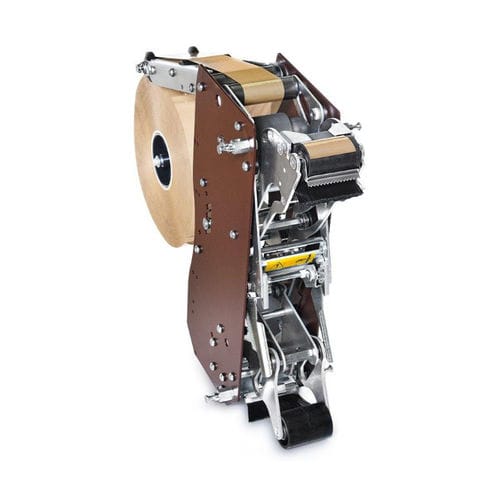

Self-adhesive tape taping head TU2 series

Taping head designed for use with 50 mm wide self-adhesive tape. The length of the overlap (50mm / 75mm) is adjustable. It can be installed on all models ofour taping machines thanks to the various sets of dedicated pins. TU 2.2        WORKING SPECS U.M.       Tape width mm./inch. 50/2" Maximum diameter of the tape reel mm. 360 Tape Reel inner hole diameter mm. 76 Minimum box height using two taping heads mm. 90 Maximum length of tape overlap mm./inch. 50/2" Minimum box width mm. 100     TECHNICAL DATA U.M.       Full length mm. 425 Inner width measured at the mounting pivots mm. 112 Full width mm. 170 Total height with full reel mm. 595 Total weight Kg. 7,4      TU 2.3     WORKING SPECS U.M.       Tape width mm./inch. 50/2" Maximum diameter of the tape reel mm. 360 Tape Reel inner hole diameter mm. 76 Minimum box height using two taping heads mm. 115 Maximum length of tape overlap mm./inch. 75/3" Minimum box width mm. 100     TECHNICAL DATA U.M.       Full length mm. 440 Inner width measured at the mounting pivots mm. 112 Full width mm. 170 Total height with full reel mm. 620 Total weight Kg. 7,4
