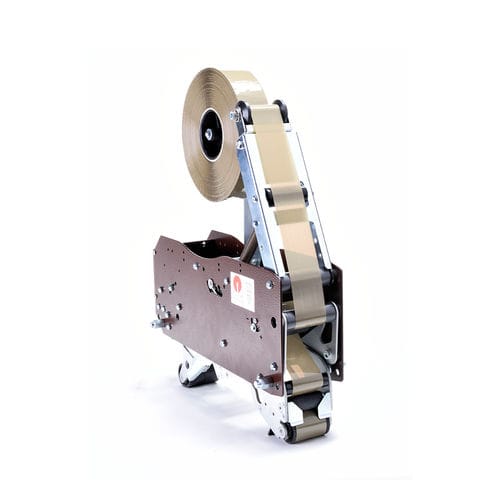

Self-adhesive tape taping head TU3 HS series

High Speed taping head designed for use with 75mm wide self-adhesive tape. It can work with timing belts with a speed up to 40m / min. TU 3.2HS         WORKING SPECS U.M.       Tape width mm./inch. 75/3" Maximum diameter of the tape reel mm. 360 Tape Reel inner hole diameter mm. 76 Minimum box height using two taping heads mm. 90 Maximum length of tape overlap mm./inch. 50/2" Minimum box width mm. 125     TECHNICAL DATA U.M.       Full length mm. 425 Inner width measured at the mounting pivots mm. 137 Full width mm. 170 Total height with full reel mm. 595 Total weight Kg. 8,2         TU 3.3HS         WORKING SPECS U.M.       Tape width mm./inch. 75/3" Maximum diameter of the tape reel mm. 360 Tape Reel inner hole diameter mm. 76 Minimum box height using two taping heads mm. 115 Maximum length of tape overlap mm./inch. 75/3" Minimum box width mm. 125     TECHNICAL DATA U.M.       Full length mm. 440 Inner width measured at the mounting pivots mm. 137 Full width mm. 170 Total height with full reel mm. 620 Total weight Kg. 8,2
