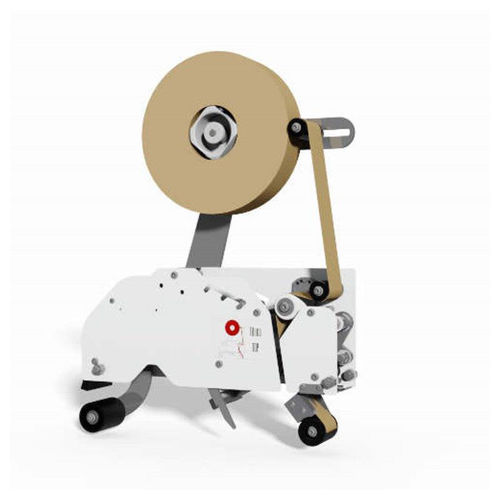

Self-adhesive tape taping head TUe

“Easy” taping head designed for use with 50mm wide self-adhesive tape. It is often used on the GT50S model to allow the taping of boxes with particular dimensions. It can be installed on all models of our taping machines thanks to the various sets of dedicated pins. TUe        WORKING SPECS U.M.       Tape width mm./inch. 50/2" Maximum diameter of the tape reel mm. 355 Tape Reel inner hole diameter mm. 76 Minimum box height using two taping heads mm. 100 Maximum length of tape overlap mm./inch. 45 / 1" 49⁄64 Minimum box width mm. 85     TECHNICAL DATA U.M.       Full length mm. 400 Inner width measured at the mounting pivots mm. 81 Full width mm. 108 Total height with full reel mm. 540 Total weight Kg. 5,7
