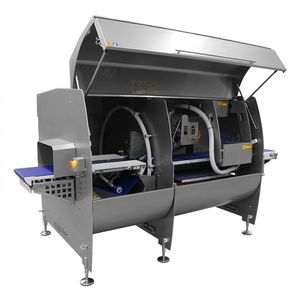

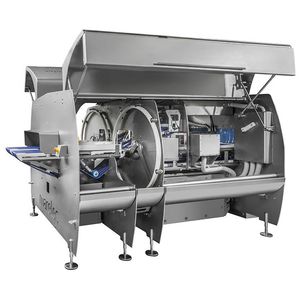

Meat portion cutter PORTIO 1D & 1DA

The MARELEC PORTIO combines state of the art technology for creating a high precision yet economic portion cutting machine. It is suited for fresh products such as fish fillets and whole fish. Following the product type, different product fixation systems are possible. Different knife types, suited to the product, can be used. A product is fed on the infeed belt. A three dimensional laser scanner then calculates its volume. A preset weight and shape frame is selected from the program menu. The portion computer then calculates where to cut. The highest possible throughput on the smallest possible footprint can be reached with the PORTIO 1D and its dual lanes. Each lane has its controller and the two lanes run completely independently from each other. Designed to give a "natural cut"-look on sliced portions, yet keeping the accuracy, the PORTIO 1DA allows the operator to change the cutting angle from 0° to 30° or 45° fast and easy, without the use of tools.Slicing under angle can be done at the same speeds as the standard PORTIO. An catch weigher can optimise the precision with changing product characteristics. The machine can be completely opened for easy cleaning. The belts can be taken out for seperate cleaning. For maintenance, easy obtainable spare parts have been selected. This guarantees lowest possible maintenance costs. All motors and encoders are situated away from the wet area, which ensures a long lasting lifetime.
