- Marelli Motori S.p.A.

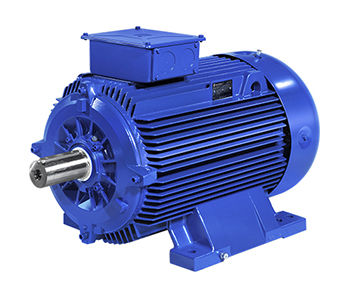

AC motor A5M - B5M seriesasynchronous100 VIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Voltage
- 100 V
- Protection class
- IP55, IP56, IP65
- Configuration
- cast iron, aluminum
- Number of poles
- 4-pole, 8-pole, 6-pole, 2-pole
- Cooling mechanism
- air-cooled
- Applications
- for winches, for marine applications
- Other characteristics
- low-voltage
- Power
Max.: 1,900 kW
(2,583.28 hp)Min.: 0 kW
(0 hp)
Description
Certificate
Marine Survey Certificate supplied with the machine.
Shaft, housing (propulsion) and exchanger are certified by the Marine Classification Society.
Housing
Motors from size 71 to 132 are made in cast iron.
Motors from size 160 to 280 are made or in cast iron or in aluminium.
Starting from frame 315 and up to 500 the frame is in cast iron only.
(EN 1561-GJL – 200)
Shield
Made of grey cast-iron (EN 1561 – GJL 200) up to 500 frame size motors.
Shaft
General data
Made in carbon steel (EN 10083 – 2 C40 – TN) up to 500 frame
Shaft design
Cylindrical shaft with key.
Main terminal box
Mounted on top and made of cold-rolled formable steels EN 10025 – S235JR or cast iron depending from size.
Fan
Made of aluminum alloy up to 500 frame.
