AC motor D5Y - D6Y - D5V series
asynchronous690 Vflameproof

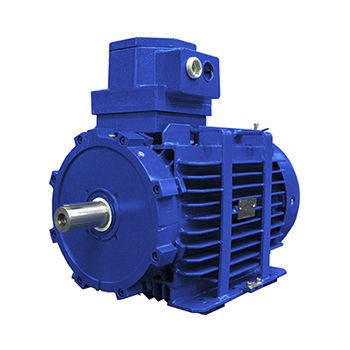

AC motor - D5Y - D6Y - D5V series - Marelli Motori S.p.A. - asynchronous / 690 V / flameproof
AC motor - D5Y - D6Y - D5V series - Marelli Motori S.p.A. - asynchronous / 690 V / flameproof
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Voltage
690 V
Protection class
flameproof, ATEX, IP55, IP56, IP65
Number of poles
4-pole, 8-pole, 6-pole, 2-pole
Cooling mechanism
air-cooled
Applications
for the oil and gas industry, for pump, blower, mill duty, for heat exchangers, for air compressors, for crane, for conveyors
Other characteristics
low-voltage
Power

132 kW, 143 kW, 200 kW
(179.47 hp, 194.426 hp, 271.924 hp)

Description

Certificate Motors from 71 to 132 frame size are certified by BVI. Motors from 160 to 315 frame size are certified by CESI. Ex d/(de) according to IEC/EN 60079-1/60079-7 and ATEX directive 94/9/EC Housing Frame is made in steel. (EN 1561-GJL-200 or better) Shield Made in cast-iron (EN 1561 – GJL 200 or better for D6 motors) Made in steel (EN 10025-S235 JR or better for small D5 motors) Shaft General data Made in carbon steel (EN 10083 – 2 C45) Shaft design Cylindrical shaft with key. Main terminal box Mounted on top. Made in cast iron. (EN 1561 – GJL 200) Fan Made in thermoplastic reinforced with glass
