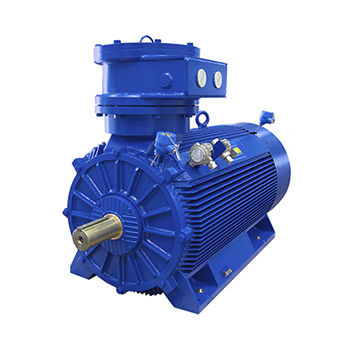

AC motor D5L series
asynchronous100 Vflameproof

AC motor - D5L series - Marelli Motori S.p.A. - asynchronous / 100 V / flameproof
AC motor - D5L series - Marelli Motori S.p.A. - asynchronous / 100 V / flameproof
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Voltage
100 V
Protection class
flameproof, ATEX, for hazardous areas, IP55, IP56, IP65
Configuration
cast iron
Number of poles
4-pole, 8-pole, 6-pole, 2-pole
Cooling mechanism
air-cooled
Applications
for the oil and gas industry, for pump, blower, mill duty, for heat exchangers, for air compressors, for crane, for conveyors
Power

550 kW, 660 kW, 750 kW, 925 kW
(747.792 hp, 897.35 hp, 1,019.716 hp, 1,257.65 hp)

Description

Certificate Motors from 71 to 132 frame size are certified by BVI. Motors from 160 to 450 frame size are certified by CESI. Ex d/(de) according to IEC/EN 60079-1/60079-7 and ATEX directive 94/9/EC. Housing Frame is made in cast iron. (EN 1561-GJL-200 or better) Shield Made in cast-iron (EN 1561 – GJL 200) Shaft General data Made in carbon steel (EN 10083 – 2 C45) Shaft design Cylindrical shaft with key. Main terminal box Mounted on top. Made in cast iron. (EN 1561 – GJL 200 or better) Fan Frame 71 ± 280 315 355 ± 450 Pole - 2 ± 6 8 2 4 ± 8 Material Thermoplastic reinforced with glass fibres Metallic Polyamide Allumium alloy
