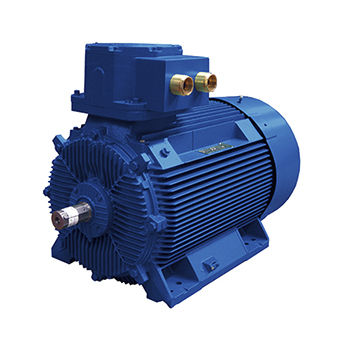

AC motor B5L series
asynchronous100 VATEX

AC motor - B5L series - Marelli Motori S.p.A. - asynchronous / 100 V / ATEX
AC motor - B5L series - Marelli Motori S.p.A. - asynchronous / 100 V / ATEX
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Voltage
100 V
Protection class
ATEX, for hazardous areas, IP55, IP56, IP65
Configuration
cast iron
Number of poles
4-pole, 8-pole, 6-pole, 2-pole
Cooling mechanism
air-cooled
Applications
for the oil and gas industry, for pump, blower, mill duty, for heat exchangers, for air compressors, for crane, for conveyors
Power

900 kW, 1,300 kW, 1,600 kW
(1,223.659 hp, 1,767.508 hp, 2,175.394 hp)

Description

Certificate Motors from 160 to 315 frame size are certified by TÜV NORD. Ex nA according to IEC/EN 60079-15 and ATEX directive 94/9/EC. Housing Frame is made in cast iron. (EN 1561-GJL-200 or better) Shield Made in cast-iron (EN 1561 – GJL 200 or better) Shaft General data Made in carbon steel (EN 10083 – 2 C45 or better) Shaft design Cylindrical shaft with key. Main terminal box Mounted on top. Made in cast iron. (EN 1561 – GJL 200 or better) Fan Frame 71 ± 280 315 355 ± 450 Pole 2 ± 8 2 ± 6 8 2 4 ± 6 Material Thermoplastic reinforced with glass fibres Metallic Polyamide Alluminum alloy
