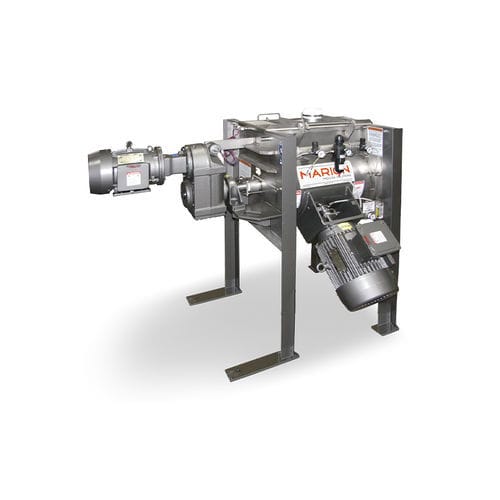

Paddle mixer

batchpowderhorizontal

This explosion proof design provides the power and durability required to mix iron powders and resin. If strong, sturdy, and tough is what you're looking for - look no more. Marion’s paddle agitator is designed for gentle mixing of solids of dissimilar size, shape, density, and viscosity. Materials travel in a 3D figure-eight pattern, constantly pulling from the end of the mixer to the middle for consistent mixing of product. Our paddle agitators can work effectively down to 20% of rated capacity, and are available welded, bolted, or a combination of both depending on the application. At Marion, we offer innovative and durable SealGuard™ air supply manifold technology to prevent costly seal damage. Acting as an insurance policy that ensures air pressure is on and flowing to the seals prior to mixing, it is a simple yet effective component of preventive maintenance that will ensure your industrial mixer is performing optimally. A superior product may be achieved by installing a chopper that provides the ability to blend and disperse in one operation. Mounted through the sides of the mixer trough, the agitator continually brings material into the chopper zone while mixing. Various styles of cutting edges on the intensive 3600 rpm chopper blades rip apart and circulate lumps and agglomerates, break up liquid-rich shot balls, open matted fibrous materials, and distribute pigments. Sample chopper applications include: • Mixing agglomerated pigments into plastic powder by dispersing the pigment and developing the color • Mixing resin into compacted asbestos, synthetic fiber, or fiberglass by allowing the resin uniformly penetrate and coat the fiber matrix
