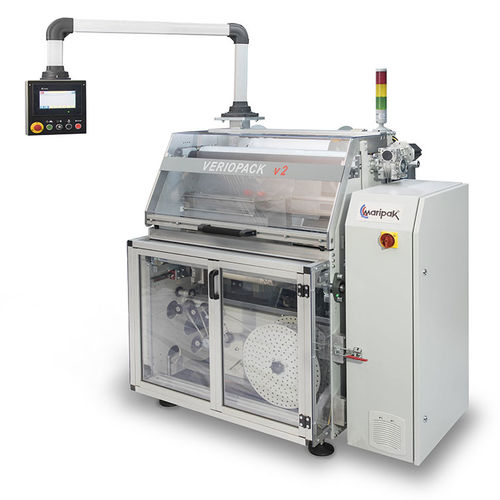

Automatic L-sealer VERIOPACK series

vertical

• Very compact and more esthetic new V2 design version • Precise and fast operation cycle by Servo driven motorized L-bar • Recordable and re-callable temperature and position adjustments • Compatible with POF/PE/PP type of packaging materials • Ability to work with light products by means of film driving winder • Easy to access film cradle, accelerated consumed roll changing Features: • Easy to integrate with various automatic inline feeding systems • Integrated discharge conveyor • Automatic packaging film drive with tension control • Automatic trim winder with tension control • Complete housing, accessible windows with safety switches • User-friendly colorful touch screen movable operator panel • Feeding frequency control by sensor detection and PLC command Sealing: • Adjustable precision and pressure force by Servo driven motor • PID controlled sealing temperature inserted by touch panel • Constant temperature L-shape Teflon coated bar sealing system • L-shape bar length: 770x224mm Flexibility: • Easily adjustable for varying product sizes and capacity requirements • Various language options and adaptable touch keyboard • Memory Receipt property for prompt adjustments • Experienced design of sealing blade compatible with broad range of thickness Optional: • Printed film applicability by marker detection sensor and programming • Automatic Feeding System Options: • Horizontal Servo Cup Counter on feeding conveyor • Vertical Counting Tower with stopper flaps • Set of Vertical Towers connected to single transfer conveyor • Automatic diameter detection and correlated auto-driven film length • Ability to use single layer flat film by center-folding unit
